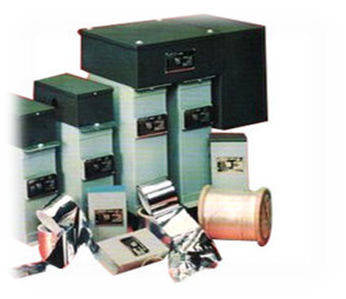

(1) LT Shunt Capacitors: -
Available in three designs (Upto 1000 VAC/Single Phase/Three Phase)
1. MPP (Metalized Polypropylene heavy duty self healing as per IS - 13340).
2. APP (Polypropylene / Film + Aluminium Foil) Non-Self healing heavy duty as per IS - 13585 Part 1.
3. Mix-Dielectric (PP Film + Tissue Paper + Aluminium Foil non self healing as per IS-13585 Part-1)
Note:
All Capacitors are vacuum impregnated with N-PCB Oil
Single Unit of maximum rating in MPP design is 30 KVAR
Single Unit of maximum rating in APP design is 50 KVAR.
Rating above 30 KVAR in MPP & above 50 KVAR in APP type are supplied in Banks
Our entire range of manufacture of L.T. Capacitors (MPP & APP) has ISI Mark
(2) HT Shunt Capacitors: -
We offer
HT Shunt Capacitors For Power Factor Improvement as per IS - 13925
Part 1
Ratings:
2.2, 3.3/3.6, 6.6/7.2 KV Single Phase & Three Phase
11/12.6 KV Three Phase or any other rating above 1 KV upto 11 KV
Capacitors
upto 150 KVAR rated 3.3 & 6.6 KV available in single unit
onwards in Banks.
(3) H.T. Capacitor Panels : -
We manufacture HT Capacitor Panels rated up to 12.65 KV, 3 Phase Comprising of Isolators, Contactors, Series Reactors, Fuses & Capacitors. These Panels are used for p. f. improvement in large Water Supply Schemes, Cement & Sugar Plants & any other industry where H.T. Motors are used.
(4) APFC Panels : -
We design & manufacture LT & HT APFC Panels either contactor or Thyrister operated to achieve unity/near unity power factor. Our APFC Panels is in wide demand in the market due to high performance and optimum efficiency. These are customized as per the specifications of our clients and are in compliance with various industrial standards

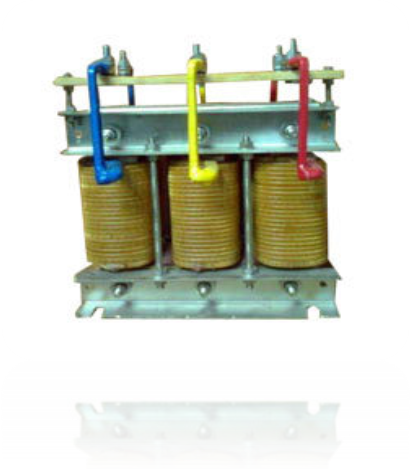

(5) Series Reactor: -
We manufacture copper / Aluminium wound, Iron cored, Air cored, Resin Cast Series Reactors either to limit in-rush current of Capacitors or to control harmonics in the system.
(6) Harmonic Filter: -
We manufacture Harmonic Filters as per Customer requirement.
(7) Surge Capacitors: -
We offer high quality Surge Capacitors to our clients. Capacitors are manufactured & tested as per IS11548.
Present range of manufacture is as under: -
|
System Voltage |
3.3 KV |
6.6 KV |
11 KV |
22 KV |
33 KV |
|
Capacitance in MFD per Phase |
0.1 to 0.5 |
0.1 to 0.5 |
0.1 to 0.5 |
0.1 to 0.5 |
0.1 to 0.5 |
|
Rated Voltage of Surge Capacitor per Phase |
6 KV |
12 KV |
18 KV |
28 KV |
40 KV |
|
Impulse Voltage |
60 KVP |
75 KVP |
100 KVP |
140 KVP |
190 KVP |
